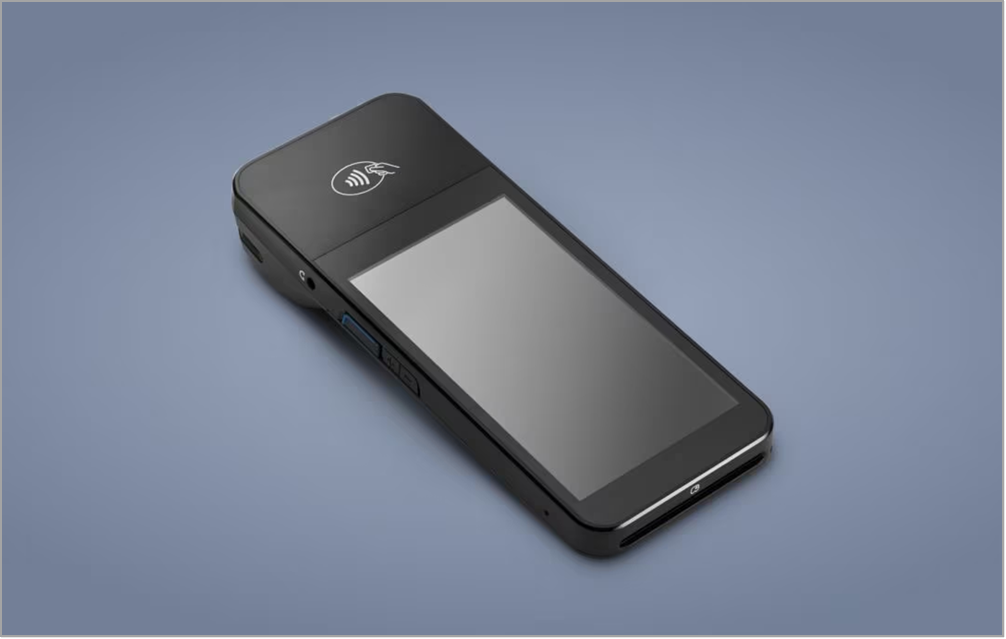

The WisePOS™ E terminal is a wireless android-based countertop terminal for use with Bottle POS. This state-of-the-art card reader accepts chip, contactless NFC, or swipe card reads, making your transaction processing easier than ever.

Our credit card readers are plug-and-play. It takes only minutes to connect it to your Wi-Fi network, enter the pairing code, and start taking payments.

The WisePOS™ E device is low-maintenance and requires no additional upkeep. Updates are automatic using the Wi-Fi network giving you no interruptions and no hassle.



Support and Features

Supported Countries

• $, United States - USD
• $, Canada - CAD



Supported Payment Methods

• PIN Debit
• Visa, Mastercard, Discover, American Express, and Diners Club
• Interac (Canada)



Supplied Components

A rechargeable battery, USB to DC cable, and region-specific power plug for charging are included.



Features

• Contactless Payments
• EMV-Enabled (chip cards)
• Touchscreen
• Wi-Fi Connection
• Ethernet Connection
• USB-C Charging with 8-Hour Battery Life
• 1-Year Limited Warranty



Powering the WisePOS™ E On and Off

The WisePOS™ E should arrive partially powered. Use the supplied wall charger to fully charge it before using it for the first time. Expect this to take at least 30 minutes.

Use the table below to try the basic usage tasks with the device.

Task	Instruction
Turn On	Press and hold the power button on the right-hand side until the screen turns on.
Sleep / Wake	Once the device is powered on, press the power button once to sleep / wake the device.
Turn Off	Press and hold the power button on the right-hand side until the 'Power Off' option is shown on the screen, then tap it.
Replace the Battery	Lift from the indentation at the bottom-center of the back cover to detach it from the device and replace the battery.



Pro Tip: The terminal should be powered off each evening and powered on each morning to receive automatic software updates.



Connect to Internet

The WisePOS™ E must be connected to the internet before it can be paired or updated. For best performance, connect it to the same network as the point-of-sale device.



Wi-Fi Setup

Connect your WisePOS™ E to the internet through its Settings menu.

The Wi-Fi network must use WPA-Personal or WPA2-Personal encryption and be password protected. Wi-Fi is not supported for non-password-protected networks or enterprise networks.

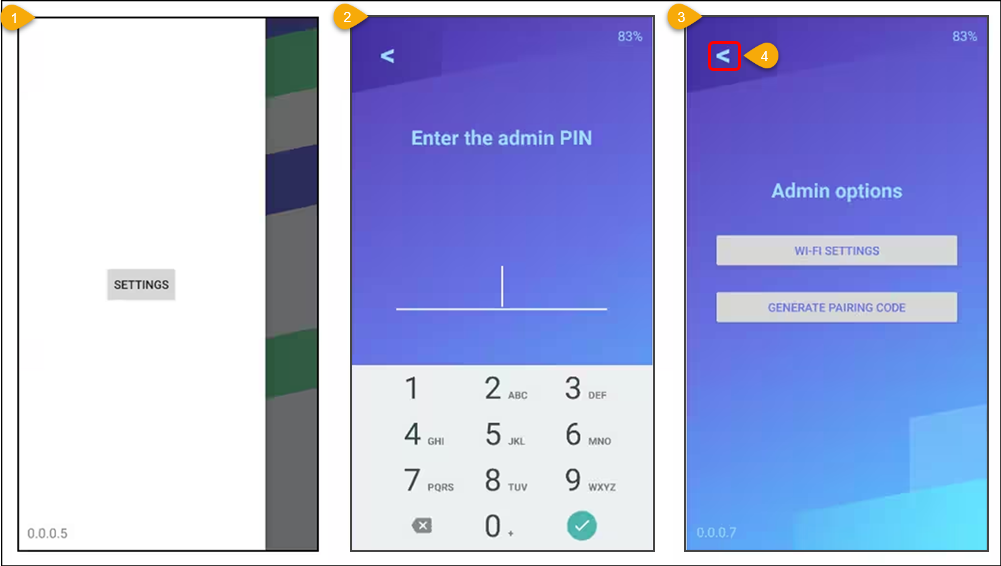

1. To open the settings menu, swipe right from the left edge of the reader screen to reveal the Settings button.
2. Tap the Settings button and enter admin PIN 07139.
3. Tap the WI-FI SETTINGS button and use the touchscreen to select your Wi-Fi network and enter its password.
4. To close the settings screen, tap the back arrow in the top left corner.



Ethernet

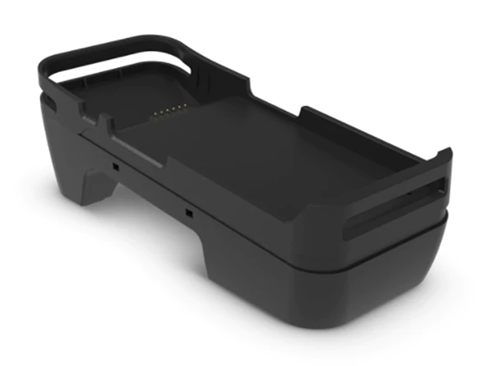

You can purchase an ethernet dock to use with an ethernet connection if Wi-Fi is not available. To use the Ethernet dock, plug in the power and ethernet cords from the underside of the device and set the device on top.



Pairing the Terminal

Once the WisePOS™ E is powered up and connected to Wi-Fi for the first time, it should display a three-word pairing code. You'll need this code later.

To pair the terminal, log in to the Payment Portal and go to Account > Profile in the top-right corner.

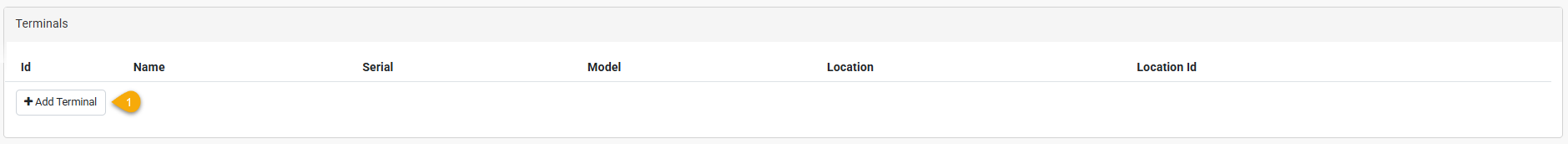

1. Scroll down to Terminals and click + Add Terminal.

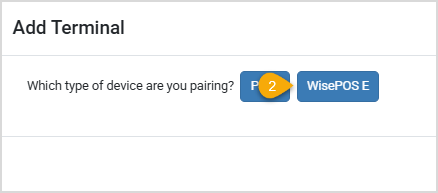

2. Select WisePOS™ E from the list.

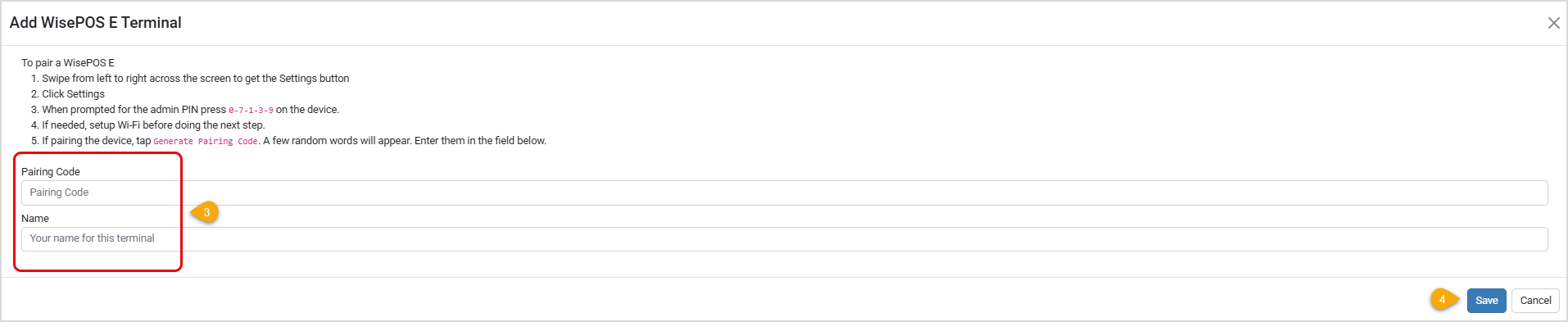

3. Enter a name and the Pairing Code. Please Note: Capitalization is not required but the code should include a hyphen between each word (ex: Pink-Elephant-Test).
4. Click the blue Save button to complete the setup.



Related Topics

S1F2 Credit Card Reader

P5 Credit Card Reader



Frequently Asked Questions

Q: Where can I find more information about the WisePOS E?

A: To view the terminal's parts and features, see the WisePOS E product sheet.



Q: I have a question, but I can't find my answer here, how do I get more assistance?

A: You can ask any question at the number below. Contact our 24/7 support team at: (877) 381-4087
